Telephone：0755-33137976Introduction

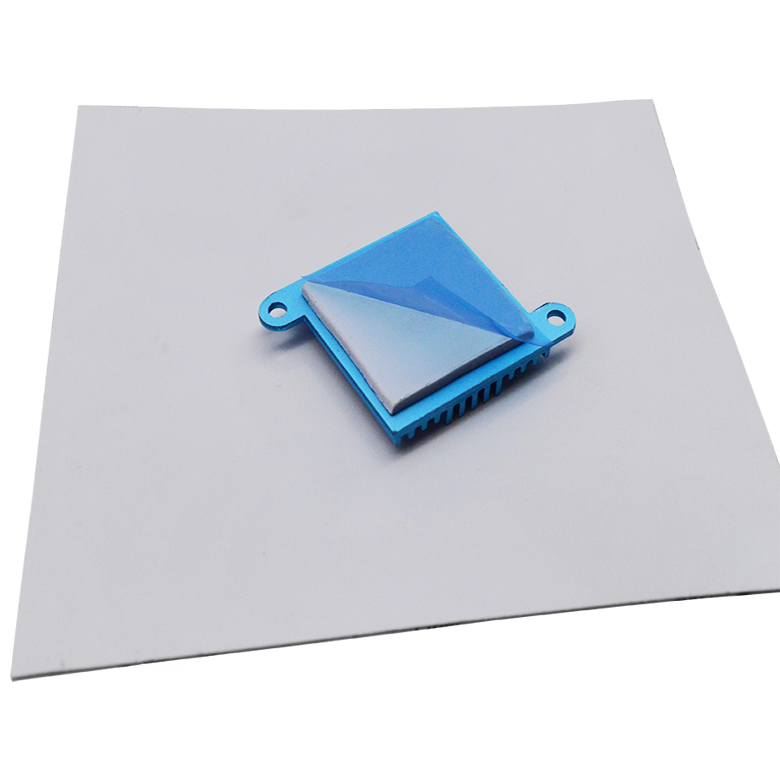

Nicom100 series heat conduction interface materials are used to fill the air gap between heating devices and heat sinks or metal bases. Their flexible and elastic characteristics enable them to be used to cover very uneven surfaces. Its excellent performance enables heat to be transmitted from the heating device or the whole PCB to the metal shell or diffusion plate, so as to improve the efficiency and service life of heating electronic components.
Features
- Good thermal conductivity: 1.5w/mk
- With self-adhesive without additional surface adhesive
- Highly compressible, soft and elastic, suitable for low pressure applications
- Various thickness options are available
Application
It is widely used in radiator bottom or frame, set-top box, power supply and vehicle storage battery, charging pile, LED TV, LED lamps, RDRAM memory module, micro heat pipe radiator, RDRAM memory module and other products.
Parameters
| Characteristic table | |||||
| Color | off white | Visual | breakdown voltage (t = above 1mm) | ＞10000 VAC | ASTM D149 |
| structure&Ingredients | Ceramic filled silicone rubber | ********** | Dielectric constant | 5.5 MHz | ASTM D150 |
| Thermal conductivity | 1.5 W/mK | ASTM D5470 | Volume resistivity | 4.0X1013 Ohm-meter | ASTM D257 |
| hardness | 50 Shore 00 | ASTM 2240 | Operating temperature range | -40 To 160 ℃ | ********** |
| proportion | 2.23g/cc | ASTM D297 | Total mass loss (TML) | 0.35% | ASTM E595 |
| Thickness range | 0.010"-0.200" (0.25mm-5.0mm) |
ASTM D374 | Fire rating | 94 V0 | UL E331100 |
Packaging
标准厚度：
0.010" (0.25mm)、 0.020" (0.51mm)、 0.030" (0.76mm)、0.040" (1.02mm)、 0.050" (1.27mm)、 0.060" (1.52mm)、 0.070" (1.78mm)、0.080" (2.03mm)、0.090" (2.29mm)、0.100" (2.54mm)、0.110" (2.79mm)、0.120" (3.05mm)、0.130" (3.30mm)、0.140" (3.56mm)、0.150" (3.81mm)、0.160" (4.06mm)、0.170" (4.32mm)、0.180" (4.57mm)、0.190" (4.83mm)、0.200" (5.08mm)
If you need different thickness, please contact our company.
Reinforcement material:
Nicom series sheets can be reinforced with glass fiber.
Standard sheet size:
8" x 16"(203mm x 406mm)、16" x 18"(406mm x 457mm)。

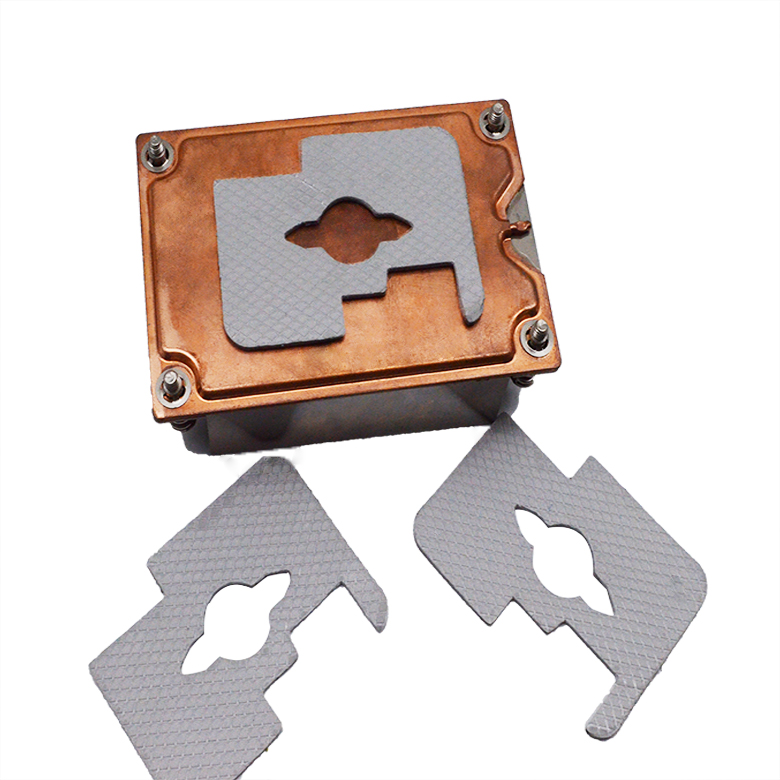

Nicom series can be die cut into different shapes.
Pressure sensitive adhesive:
" A1" The tail code is marked as single-sided viscosity.
" A2" The tail code is marked as double-sided viscosity.
