NICOM92500

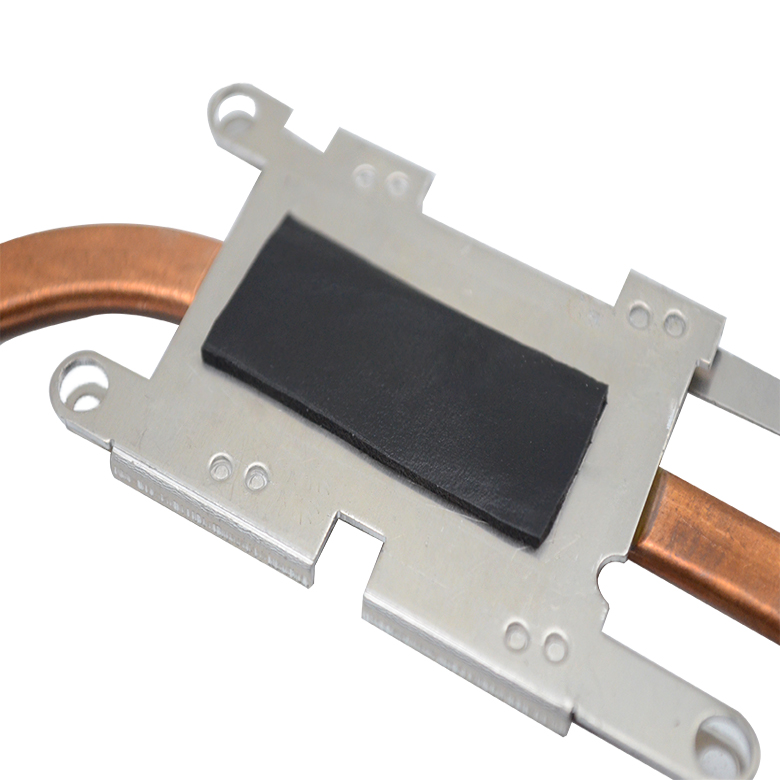

Nicom92500 series heat conduction interface materials are used to fill the air gap between heating devices and heat sinks or metal bases. Their flexible and elastic characteristics enable them to be used to cover very uneven surfaces. Its excellent performance enables heat to be transmitted from the heating device or the whole PCB to the metal shell or diffusion plate, so as to improve the efficiency and service life of heating electronic components.
Book now
Telephone:0755-33137976
Product Details

Introduction

Nicom92500 series heat conduction interface materials are used to fill the air gap between heating devices and heat sinks or metal bases. Their flexible and elastic characteristics enable them to be used to cover very uneven surfaces. Its excellent performance enables heat to be transmitted from the heating device or the whole PCB to the metal shell or diffusion plate, so as to improve the efficiency and service life of heating electronic components.



Features


  • Good thermal conductivity:25.0W/mK
  • With self-adhesive without additional surface adhesive.
  • Highly compressible, soft and elastic, suitable for low pressure applications.
  • A variety of thickness and hardness options are available, self-adhesive without additional surface adhesive




Application

It is widely used in radiator bottom or frame, set-top box, power supply and vehicle storage battery, charging pile, LED TV, LED lamps, RDRAM memory module, micro heat pipe radiator, RDRAM memory module and other products.




Parameters

Characteristic table
colour black Visual Thermal impedance(C*in2/W) (@20psi,0.3mm) ≤0.08 ASTM D5470
Structure&Ingredients Graphite filled silicone rubber  ********** Dielectric constant 5.5 MHz ASTM D150
Thermal conductivity 25.0 W/mK ASTM D5470 Volume resistivity <200 ASTM D257
ISO22007-2.2
hardness 60  Shore 00 ASTM 2240 Operating temperature range -40 To 200 ℃ IEC60068-2-14
proportion 1.8g/cm3 ASTM D792 ROHS accord with IEC62321


Packaging

Standard thickness:

0.012" (0.30mm)、 0.020" (0.50mm)、 0.030" (0.75mm)、0.040" (1.00mm)、0.060" (1.50mm)、 0.080" (2.00mm)、0.100" (2.50mm)、0.120" (3.00mm)、0.140" (3.50mm)、0.160" (4.00mm)、0.180" (4.50mm)、0.200" (5.00mm) Maximum standard size80mm*80mm

If you need different thickness, please contact our company.

Reinforcement material:

Nicom series sheets can be reinforced with glass fiber.

Standard sheet size:

8" x 16"(203mm x 406mm)、16" x 18"(406mm x 457mm)。

Nicom series can be die cut into different shapes.

Pressure sensitive adhesive:

" A1" The tail code is marked as single-sided viscosity.

" A2" The tail code is marked as double-sided viscosity.
