Thermal conductive silicone nicom500s

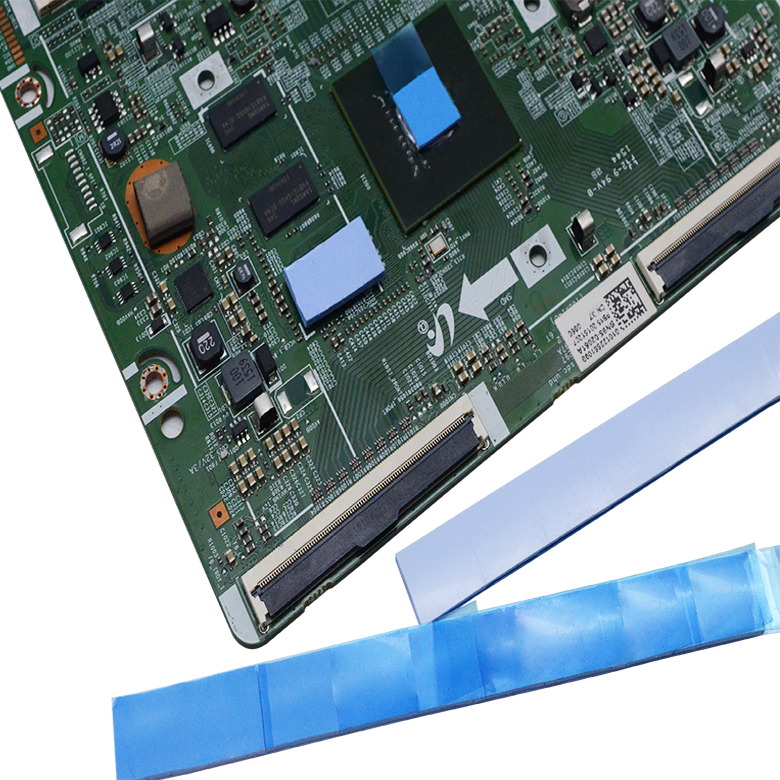

Nicom500s series heat conduction interface materials are used to fill the air gap between heating devices and heat sinks or metal bases. Their flexible and elastic characteristics enable them to cover very uneven surfaces. Its excellent performance enables heat to be transmitted from the heating device or the whole PCB to the metal shell or diffusion plate, so as to improve the efficiency and service life of heating electronic components.
Book now
Telephone:0755-33137976
Product Details

Product introduction

Nicom500s series heat conduction interface materials are used to fill the air gap between heating devices and heat sinks or metal bases. Their flexible and elastic characteristics enable them to cover very uneven surfaces. Its excellent performance enables heat to be transmitted from the heating device or the whole PCB to the metal shell or diffusion plate, so as to improve the efficiency and service life of heating electronic components.



Product features


  • Good thermal conductivity: 3.0W/mK
  • With self-adhesive without additional surface adhesive.
  • Highly compressible, soft and elastic, suitable for low pressure applications.
  • A variety of thickness and hardness options are available, self-adhesive without additional surface adhesive




Application

It is widely used in radiator bottom or frame, set-top box, power supply and vehicle storage battery, charging pile, LED TV, LED lamps, RDRAM memory module, micro heat pipe radiator, RDRAM memory module and other products.



Parameters

Characteristic table
colour blue Visual Breakdown voltage (t = above 1mm) >5000 VAC ASTM D149
Structure & amp; Ingredients Ceramic filled silicone rubber  ********** Dielectric constant 5.5 MHz ASTM D150
Thermal conductivity 3.0 W/mK ASTM D5470 Volume resistivity 6.3X1013 Ohm-meter ASTM D257
hardness 40  Shore 00 ASTM 2240 Operating temperature range -40 To 160 ℃ **********
proportion 2.64g/cc ASTM D297 Total mass loss (TML) 0.45% ASTM E595
Thickness range

     0.010"-0.200"

   (0.25mm-5.0mm)

ASTM D374 Fire rating 94 V0 UL E331100


Packaging

Standard thickness:

0.010" (0.25mm)、 0.020" (0.51mm)、 0.030" (0.76mm)、0.040" (1.02mm)、 0.050" (1.27mm)、 0.060" (1.52mm)、 0.070" (1.78mm)、0.080" (2.03mm)、0.090" (2.29mm)、0.100" (2.54mm)、0.110" (2.79mm)、0.120" (3.05mm)、0.130" (3.30mm)、0.140" (3.56mm)、0.150" (3.81mm)、0.160" (4.06mm)、0.170" (4.32mm)、0.180" (4.57mm)、0.190" (4.83mm)、0.200" (5.08mm)

If you need different thickness, please contact our company。

Reinforcement material:

Nicom series sheets can be reinforced with glass fiber.

Standard sheet size:

8" x 16"(203mm x 406mm)、16" x 18"(406mm x 457mm)。

Nicom series can be die cut into different shapes.

Pressure sensitive adhesive:

"A1"The tail code is marked as single-sided viscosity.

" A2" The tail code is marked as double-sided viscosity.
