YHD780-10
It is widely used in semiconductor block and radiator, between power resistor and base, temperature regulator and assembly surface, thermoelectric cooling device, high-performance CPU and graphics card processor, automatic operation and screen printing.
Book now
Telephone:0755-33137976
Product Details

Introduction

Yhd780-10 product is a heat conduction product based on silicone, which is safe for the environment. It aims to solve the problems of overheating and reliability

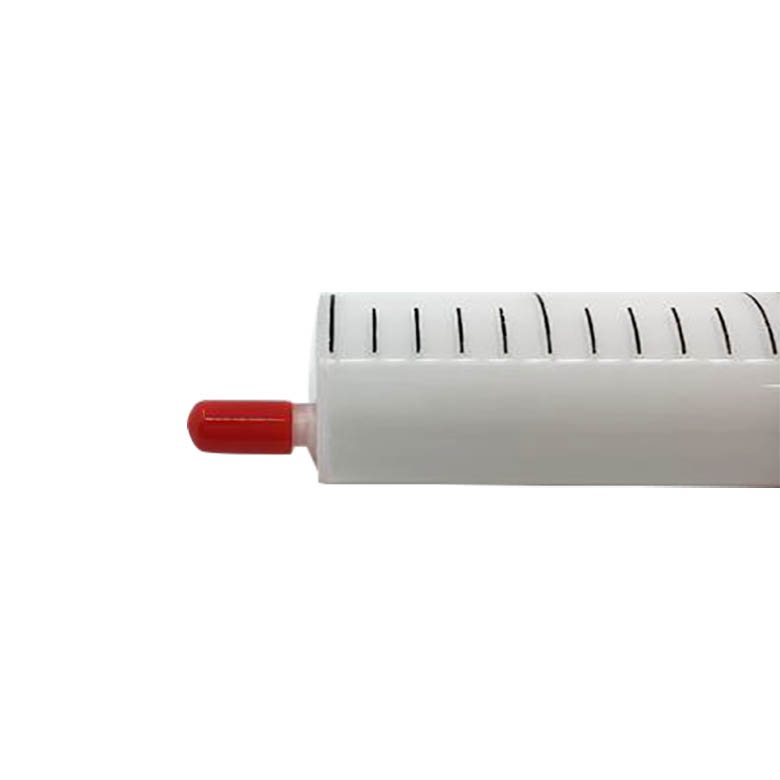

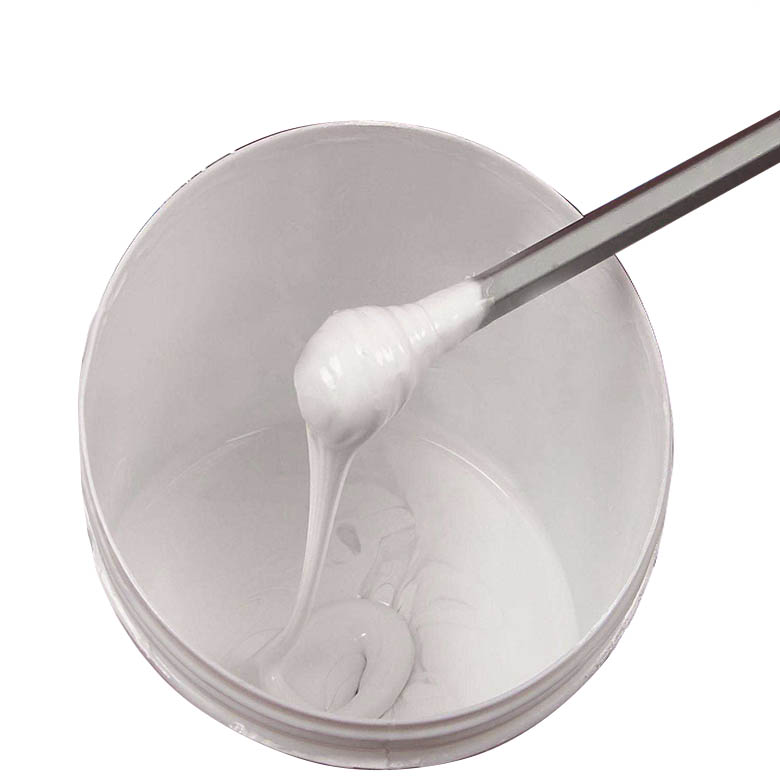

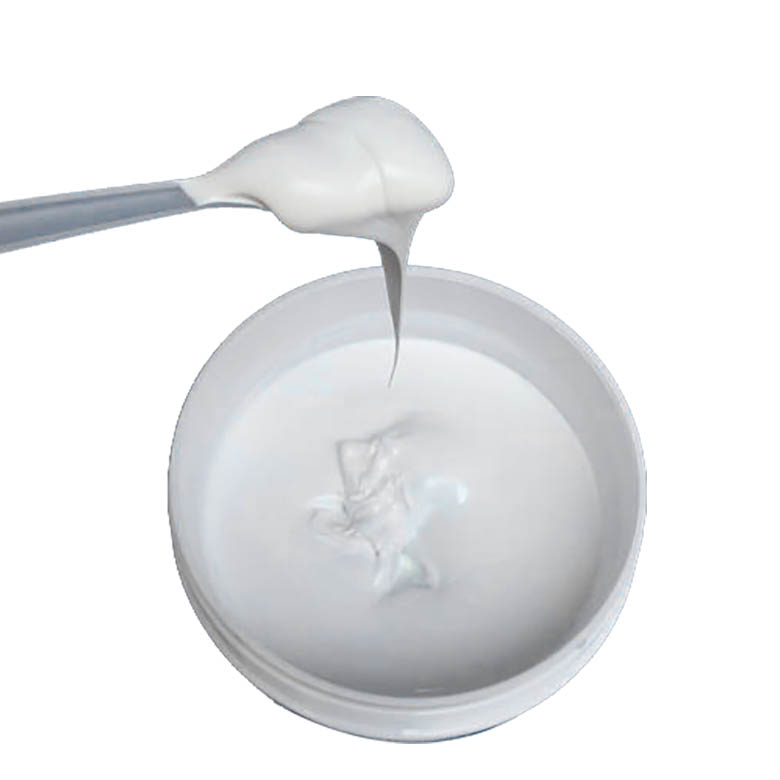

Yhd780-10 is a paste like heat conduction product, which is filled between electronic components and heat sink. It can fully wet the contact surface, so as to form a very low thermal resistance interface. The heat dissipation efficiency is much superior to other heat conduction products

Features


  • 0.15℃-in²/ W thermal resistance
  • Environmentally friendly and non-toxic
  • Excellent electrical insulation
  • Completely fill the contact surface to create low thermal resistance


Application

It is widely used in semiconductor block and radiator, between power resistor and base, temperature regulator and assembly surface, thermoelectric cooling device, high-performance CPU and graphics card processor, automatic operation and screen printing.




Parameters

Characteristic table
Product name YHD780-10 test method
colour white visual
structure&component Metal oxide / silicone oil  **********
viscosity  1000K cps @.25℃  brudzinski RVF,#7
proportion 2.13 g/cm3  ASTM 2240
Operating temperature range  -45℃ to 200℃  **********
Volatilization rate  0.23%  /  200℃@24hrs ASTM E595
Thermal conductivity  1.0 W/mK  ASTM D5470
Thermal impedance@50psi  0.15℃-in²/W   ASTM D5470


Packing method:

Yhd780 - 10 can use 1kg (pint container), 3kg (Quart container) and 10kg (gallon container)

If you need different thickness, please contact our company

storage method:

It is recommended that the maximum humidity of the storage space stored at 20 ℃ - 35 ℃ should not exceed 50%, and should not be stored in the refrigerator space below 10 ℃
