YHD780-50
It is widely used in semiconductor block and radiator, chip, set-top box, LED TV, between power resistor and base, temperature regulator and assembly surface, thermoelectric cooling device, high-performance CPU and graphics card processor, automatic operation and screen printing.
Book now
Telephone:0755-33137976
Product Details

Introduction

Yhd780-50 product is a heat conduction product based on silicone, which is safe for the environment. It aims to solve the problems of overheating and reliability

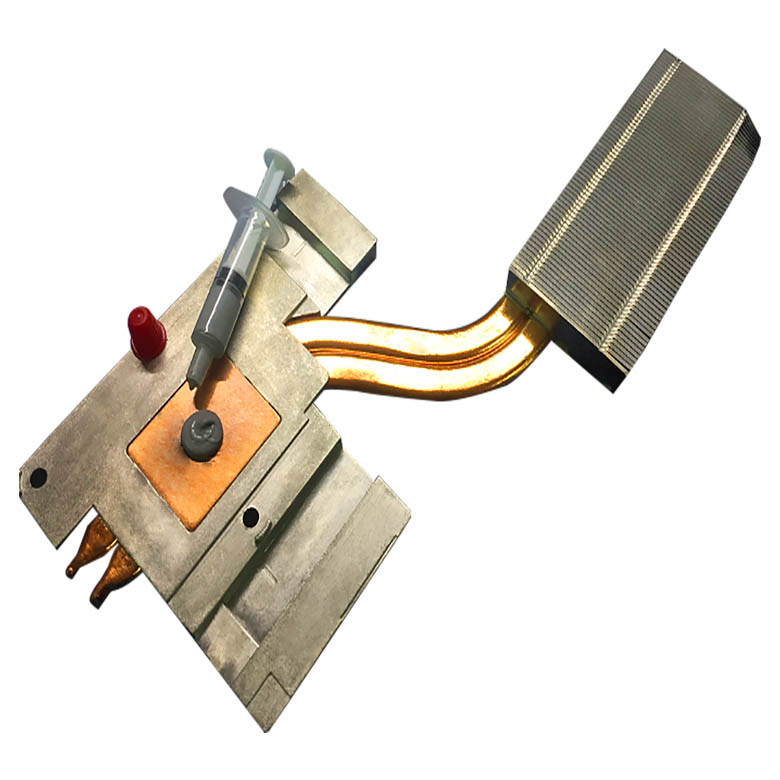

Yhd780-50 is a paste like heat conduction product, which is filled between electronic components and heat sink. It can fully wet the contact surface, so as to form a very low thermal resistance interface. The heat dissipation efficiency is much superior to other heat conduction products

Features

  • 0.009℃-in²/ W low thermal resistance
  • Environmentally friendly and non-toxic
  • Excellent electrical insulation
  • Completely fill the contact surface to create low thermal resistance


Application

It is widely used in semiconductor block and radiator, chip, set-top box, LED TV, between power resistor and base, temperature regulator and assembly surface, thermoelectric cooling device, high-performance CPU and graphics card processor, automatic operation and screen printing.

Parameters

Characteristic table
Product name YHD780-50 Test method
Colour Grey Visual
Structure & Ingredients Metal oxide / silicone oil   *****
Viscosity   2300K cps @.25℃  Brinell RVF, #7
Specific gravity 2.75 g/cm3  ASTM 2240
Operating temperature range & nbsp -45℃ to 200℃  *****
Volatilization rate   0.13%  /  200℃@24hrs ASTM E595
Thermal conductivity   5.0 W/mK  ASTM D5470
Thermal impedance   0.009℃-in²/ W   ASTM D5470

packaging method:

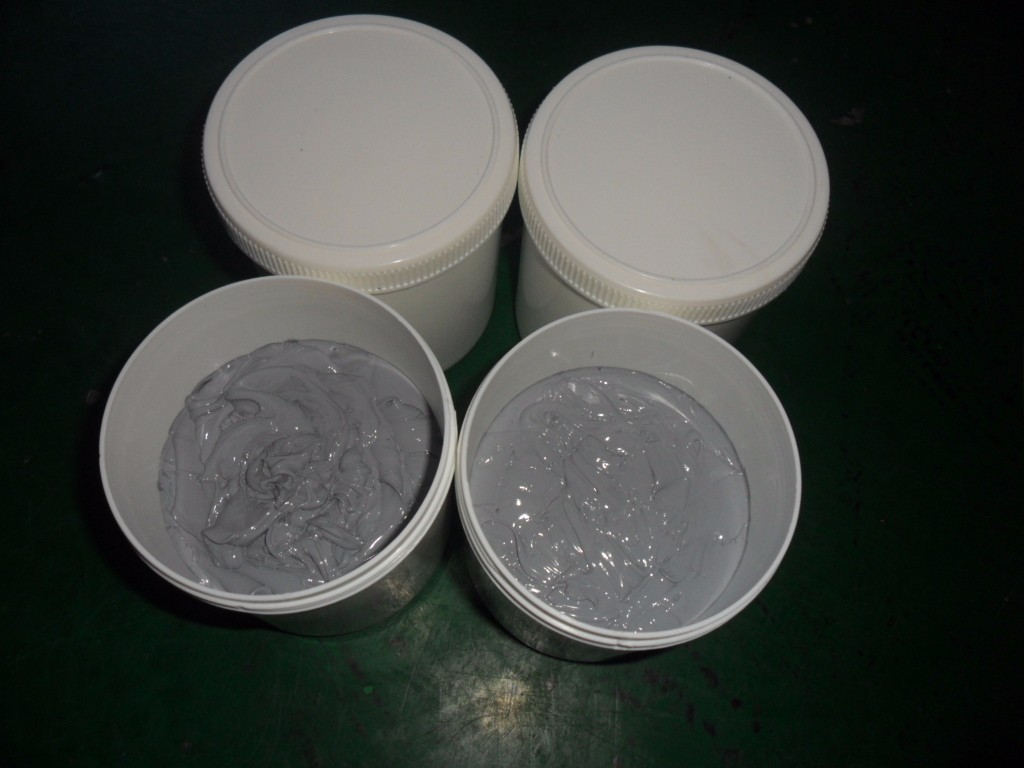

Yhd780 - 50 can use 1kg (pint container), 3kg (Quart container) and 10kg (gallon container)

If you need different thickness, please contact our company

storage method:

It is recommended that the maximum humidity of the storage space stored at 20 ℃ - 35 ℃ should not exceed 50%, and should not be stored in the refrigerator space below 10 ℃
