YHD780-56
It is widely used in semiconductor block and radiator, chip, set-top box, LED TV, between power resistor and base, temperature regulator and assembly surface, thermoelectric cooling device, high-performance CPU and graphics card processor, automatic operation and screen printing.
Book now
Telephone:0755-33137976
Product Details

Introduction

Yhd780-56 is a heat conduction product based on silicone, which is safe for the environment. It aims to solve the problems of overheating and reliability

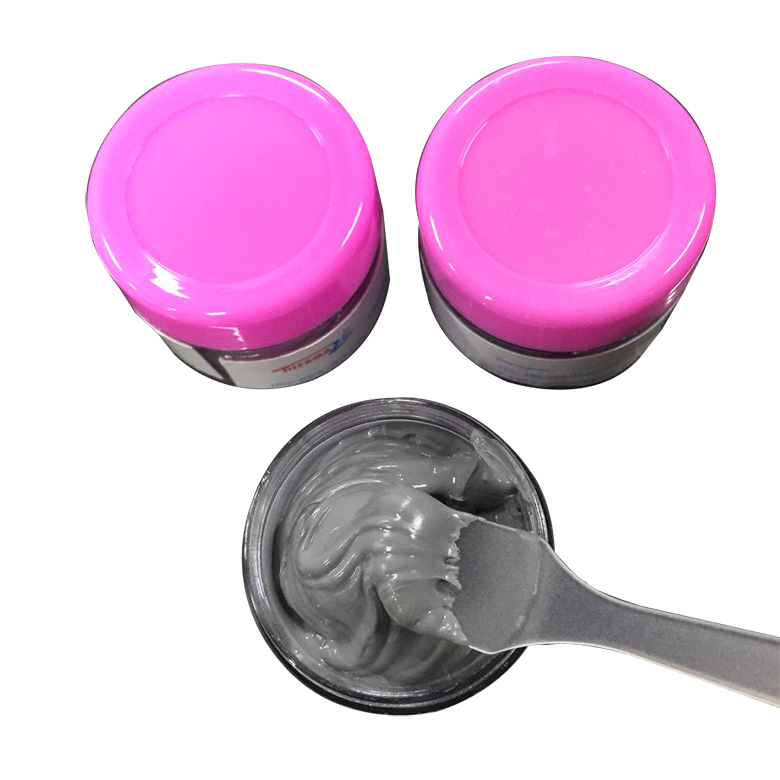

Yhd780-56 is a paste like heat conduction product, which is filled between electronic components and heat sink. It can fully wet the contact surface, so as to form a very low thermal resistance interface. The heat dissipation efficiency is much superior to other heat conduction products

Features

  • 0.005℃-in²/ W low thermal resistance
  • Environmentally friendly and non-toxic
  • Excellent long-term stability
  • Completely fill the contact surface to create low thermal resistance


Application

It is widely used in semiconductor block and radiator, chip, set-top box, LED TV, between power resistor and base, temperature regulator and assembly surface, thermoelectric cooling device, high-performance CPU and graphics card processor, automatic operation and screen printing.

Parameters

YHD780-56 Characteristic table
Product name YHD780-56 test method
colour grey visual
structure&component Metal oxide / silicone oil  *****
viscosity  3700K cps @.25℃  brudzinski RVF,#7
proportion 2.96 g/cm3  ASTM 2240
Operating temperature range  -45℃ to 200℃  *****
Volatilization rate  0.18%  /  200℃@24hrs ASTM E595
Thermal conductivity  5.6 W/mK  ASTM D5470
Thermal impedance  0.005℃-in²/W   ASTM D5470

packaging method:

Yhd780 - 56 can use 1kg (pint container), 3kg (Quart container) and 10kg (gallon container)

If you need different thickness, please contact our company

storage method:

It is recommended that the maximum humidity of the storage space stored at 20 ℃ - 35 ℃ should not exceed 50%, and should not be stored in the refrigerator space below 10 ℃
