NICOM700HM
It is widely used in radiator bottom or frame, set-top box, power supply and vehicle storage battery, charging pile, LED TV, LED lamps, RDRAM memory module, micro heat pipe radiator, RDRAM memory module and other products.
Book now
Telephone:0755-33137976
Product Details

Introduction

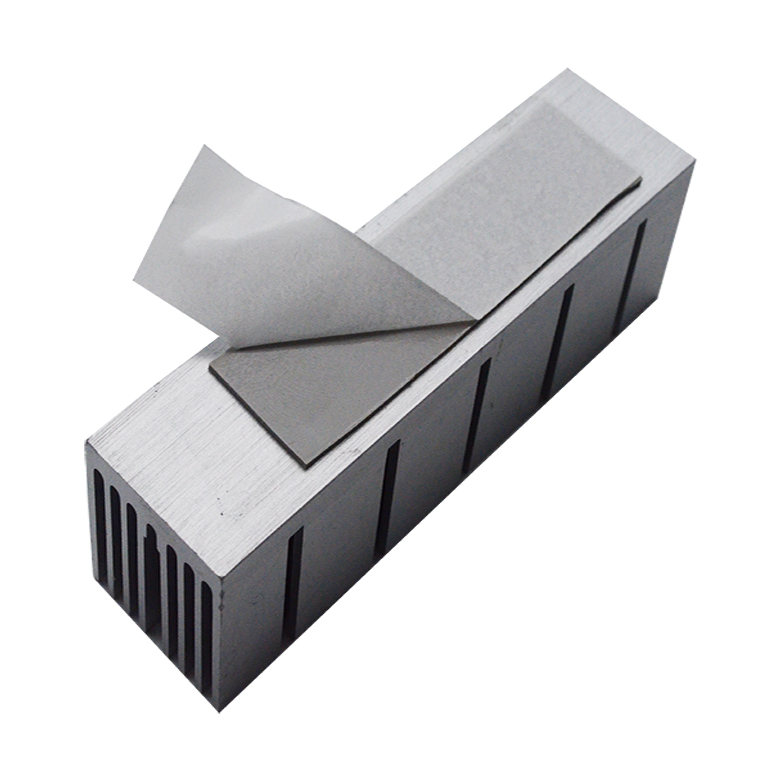

Nicom700hm series heat conduction interface materials are used to fill the air gap between heating devices and heat sinks or metal bases. Their flexible and elastic characteristics enable them to be used to cover very uneven surfaces- 40 ~ 160 ℃ temperature and low pressure environment can work stably. Its excellent performance enables heat to be transmitted from the heating device or the whole PCB to the metal shell or diffusion plate, so as to improve the efficiency and service life of heating electronic components.

Features


  • Good thermal conductivity: 6.0w/mk
  • With self-adhesive without additional surface adhesive
  • Highly compressible, soft and elastic, suitable for low pressure applications
  • The product can work stably at - 40 ~ 160 ℃ and under low pressure




Application

It is widely used in radiator bottom or frame, set-top box, power supply and vehicle storage battery, charging pile, LED TV, LED lamps, RDRAM memory module, micro heat pipe radiator, RDRAM memory module and other products.



Parameters

Characteristic table
Color off white Hoar breakdown voltage (t = above 1mm) 5.5 KV ASTM D149
structure   Ingredients ceramic filled silicone rubber   ********** dielectric constant @ 1MHz 4.5 MHz ASTM D150
thermal conductivity 6.0 W/mK ASTM D5470 volume resistivity 5.2X1013 Ohm-meter ASTM D257
GB-T32064
hardness 50 Shore 00 ASTM 2240 Operating temperature range   -40 To 160 ℃ **********
proportion 3.45g/cc ASTM D297 Total mass loss (TML) 0.30% ASTM E595
Thickness range     0.030"-0.400"  ASTM D374 Fire rating UL94 V0 UL E331100


Packaging

standard thickness:

0.030" (0.75mm)、 0.400" (10.0mm)

If you need different thickness, please contact our company

reinforcing material:

Nicom series sheets can be reinforced with glass fiber

standard sheet size:

10" x 16" (254mm x 406mm)

Nicom series can be die cut into different shapes

pressure sensitive adhesive:

" A1" The tail code is marked as single-sided viscosity

" A2" The tail code is marked as double-sided viscosity
