NICOM300

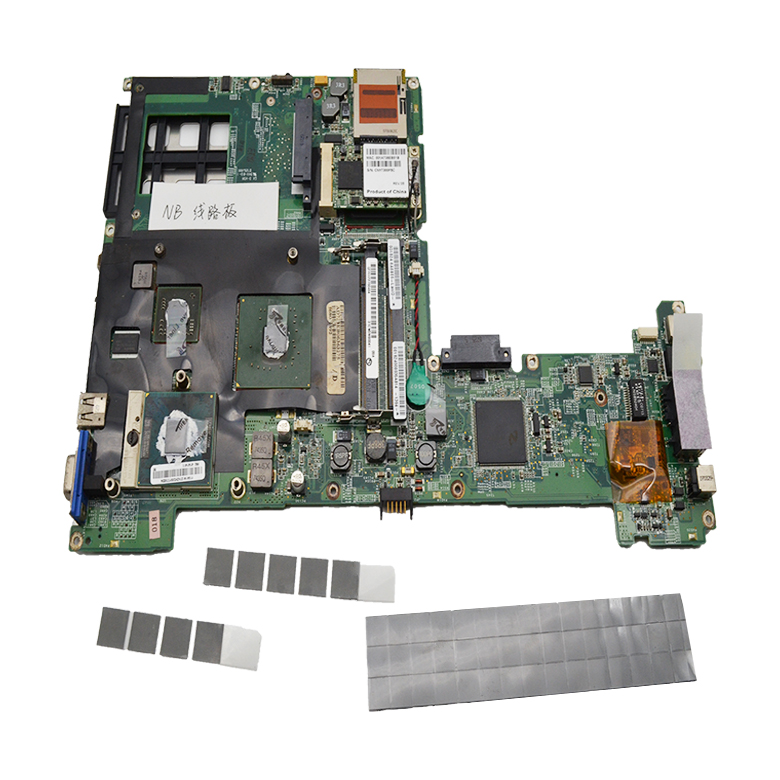

Nicom300 series heat conduction interface materials are used to fill the air gap between heating devices and heat sinks or metal bases. Their flexible and elastic characteristics enable them to be used to cover very uneven surfaces. Its excellent performance enables heat to be transmitted from the heating device or the whole PCB to the metal shell or diffusion plate, so as to improve the efficiency and service life of heating electronic components. It can provide a variety of thickness options, compressibility, long service life and stable performance.
Book now
Telephone:0755-33137976
Product Details

Introduction

Nicom300 series heat conduction interface materials are used to fill the air gap between heating devices and heat sinks or metal bases. Their flexible and elastic characteristics enable them to be used to cover very uneven surfaces. Its excellent performance enables heat to be transmitted from the heating device or the whole PCB to the metal shell or diffusion plate, so as to improve the efficiency and service life of heating electronic components. It can provide a variety of thickness options, compressibility, long service life and stable performance.



Features


  • Good thermal conductivity: 2.8w/mk
  • With self-adhesive without additional surface adhesive
  • Highly compressible, soft and elastic, suitable for low pressure applications
  • It can provide a variety of thickness options, stable performance and long service life




Application

It is widely used in radiator bottom or frame, set-top box, power supply and vehicle storage battery, charging pile, LED TV, LED lamps, RDRAM memory module, micro heat pipe radiator, RDRAM memory module and other products.




Parameters

     NICOM 系列Characteristic table
colour grey  Visual Thermal volume 1 l/g-K ASTM C351
   structure&Ingredients  Ceramic filled silicone rubber    ********** Dielectric constant 10.2 MHz ASTM D150
 Thermal conductivity 2.8 W/mK ASTM D5470 Volume resistivity   6.4X1013 Ohm-meter   ASTM D257
 hardness 27  Shore 00 ASTM 2240 Operating temperature range -40 To 160 ℃ **********
 proportion 2.41g/cc ASTM D297    Total mass loss (TML) 0.45% ASTM E595
   Thickness range

 0.010"-0.200"
    (0.25mm-5.0mm)


    ASTM D374

Fire rating 94 V0 UL E331100


Packaging

Standard thickness:

0.010" (0.25mm)、 0.020" (0.51mm)、 0.030" (0.76mm)、0.040" (1.02mm)、 0.050" (1.27mm)、 0.060" (1.52mm)、 0.070" (1.78mm)、0.080" (2.03mm)、0.090" (2.29mm)、0.100" (2.54mm)、0.110" (2.79mm)、0.120" (3.05mm)、0.130" (3.30mm)、0.140" (3.56mm)、0.150" (3.81mm)、0.160" (4.06mm)、0.170" (4.32mm)、0.180" (4.57mm)、0.190" (4.83mm)、0.200" (5.08mm)

If you need different thickness, please contact our company.

Reinforcement material:

Nicom series sheets can be reinforced with glass fiber.

Standard sheet size:

8" x 16"(203mm x 406mm)、16" x 18"(406mm x 457mm)。

Nicom series can be die cut into different shapes.

Pressure sensitive adhesive:

" A1" The tail code is marked as single-sided viscosity.

" A2" The tail code is marked as double-sided viscosity
